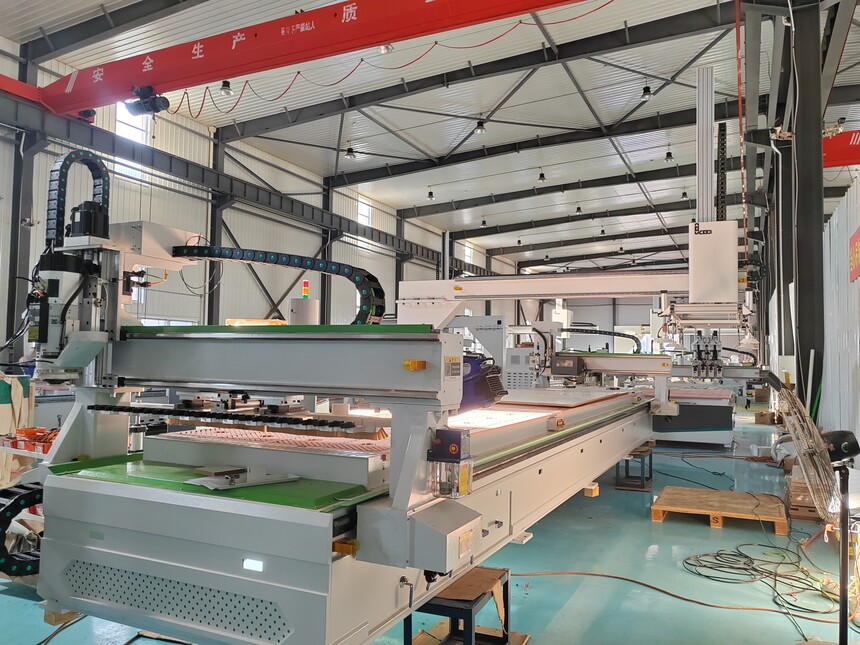

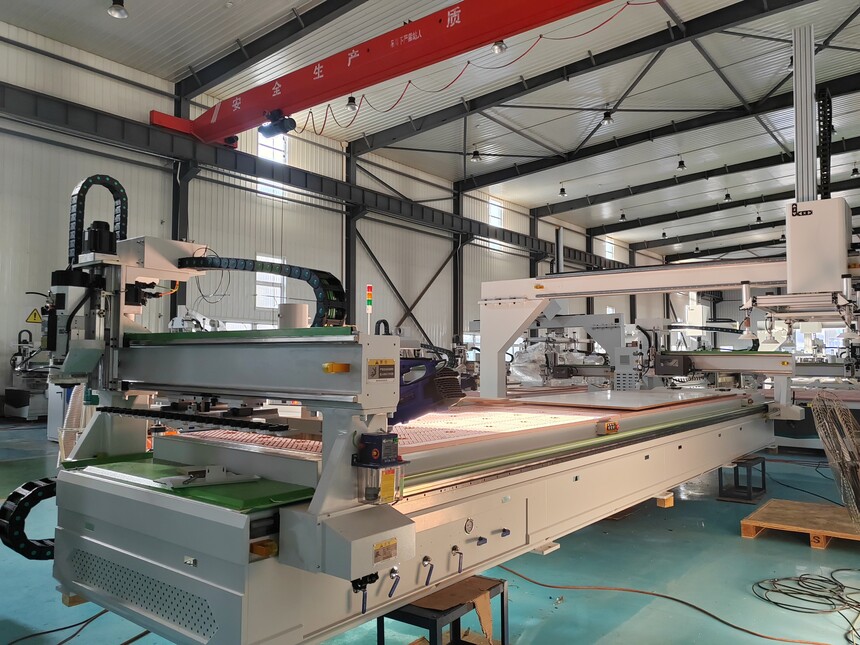

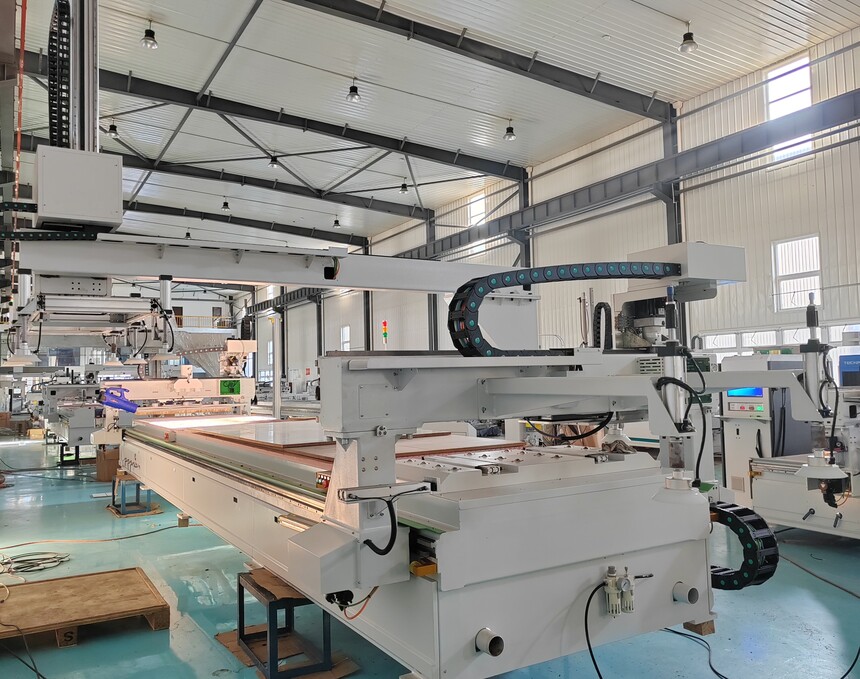

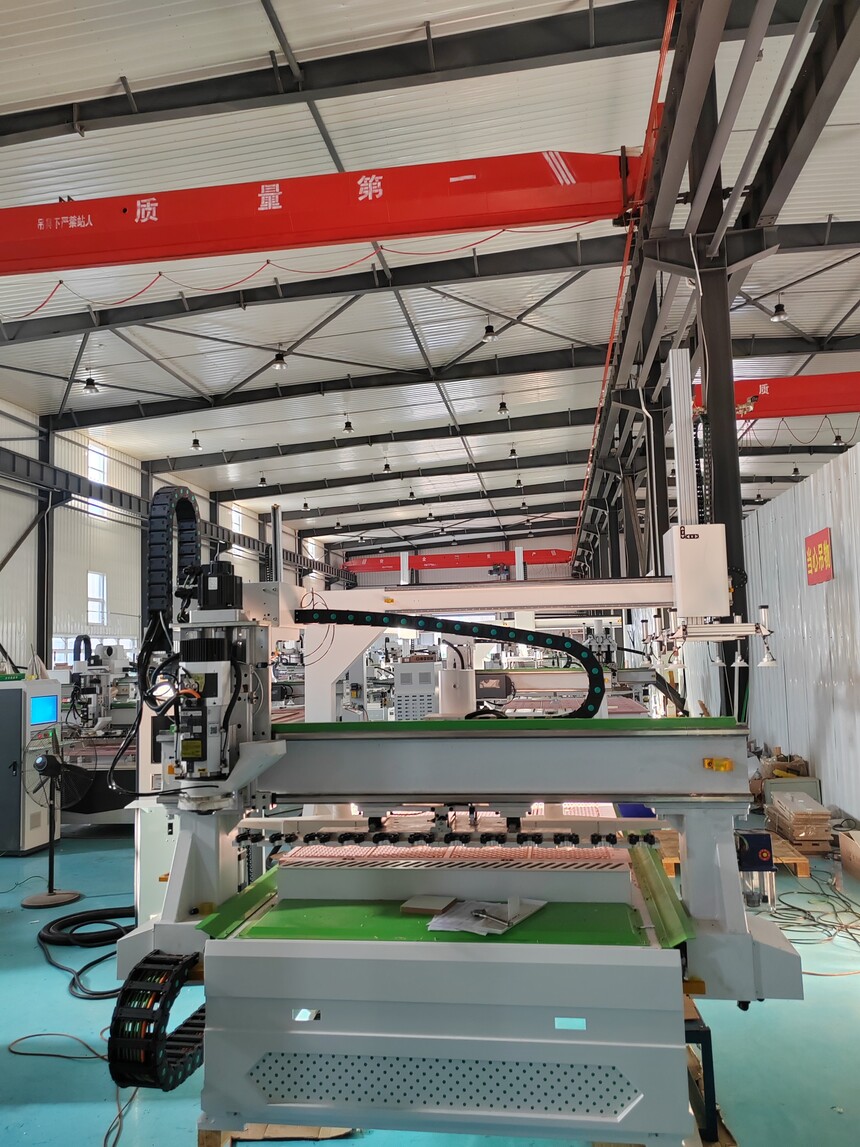

Automatic Loading &Labeling & Cutting all in one Machine

No

Name

Specification

Quantity

Pictures

1

Labeling & cutting all in one machine

External size£º8100*3900*2300mm

Working size£º1220*2440*18/1220*2800*18

Machine power£º19.5Kw

Machine weight£º3500kg

Cutting machine with Taiwan LNC control system£º£¨linear type 9kw CC spindle with  12 tool magazines



Labeling machine£ºindustrial grade printer£¬stable and efficient. With 3 large suction cups, easily grab the plate feeding.



















1









2





Belt machine

External size£º2600*1400*900mm



Belt table size£º5800*1250mm



Gantry profile£º40*80mm

Weight£º200kg





1





3





Cantilever gantry loading machine

Beam size£º3900mm

Power£º3Kw

Max. height£º4300mm

The beam is off the ground£º2000mm

Max. Stacking height£º1500mm

Max. Load bearing£º100kg

Loading & unloading speed£º4 times/min.

Weight£º1800kg

Using Xinjie PLC, servo motor









1

Cantilever type convenient forklift inlet and exit stacking height increased




Advantages:



1)The gantry loading, the customer can put a whole piece of plate. Compared with the traditional loading and unloading, more feeding, traditional loading even dig a hole can not put a whole board.



2)Six independent large suction cups, the plate suction on the material, grasp the material firmly, and no damage and wear to the plate.



3)Steel beam double column structure labeling machine, a more stable labeling, faster speed.



4)After feeding, the labeling machine once positioning, paste the label suction cup grasp up and directly sent to the opening machine station without the need to repositioning, direct cutting, save the opening machine grasp material, after positioning, side positioning time, higher efficiency.



5)Make cabinet body with six side drilling efficiency, stable output. Do door panels, especially PET door panels without damage, is the ideal choice for furniture factory!
